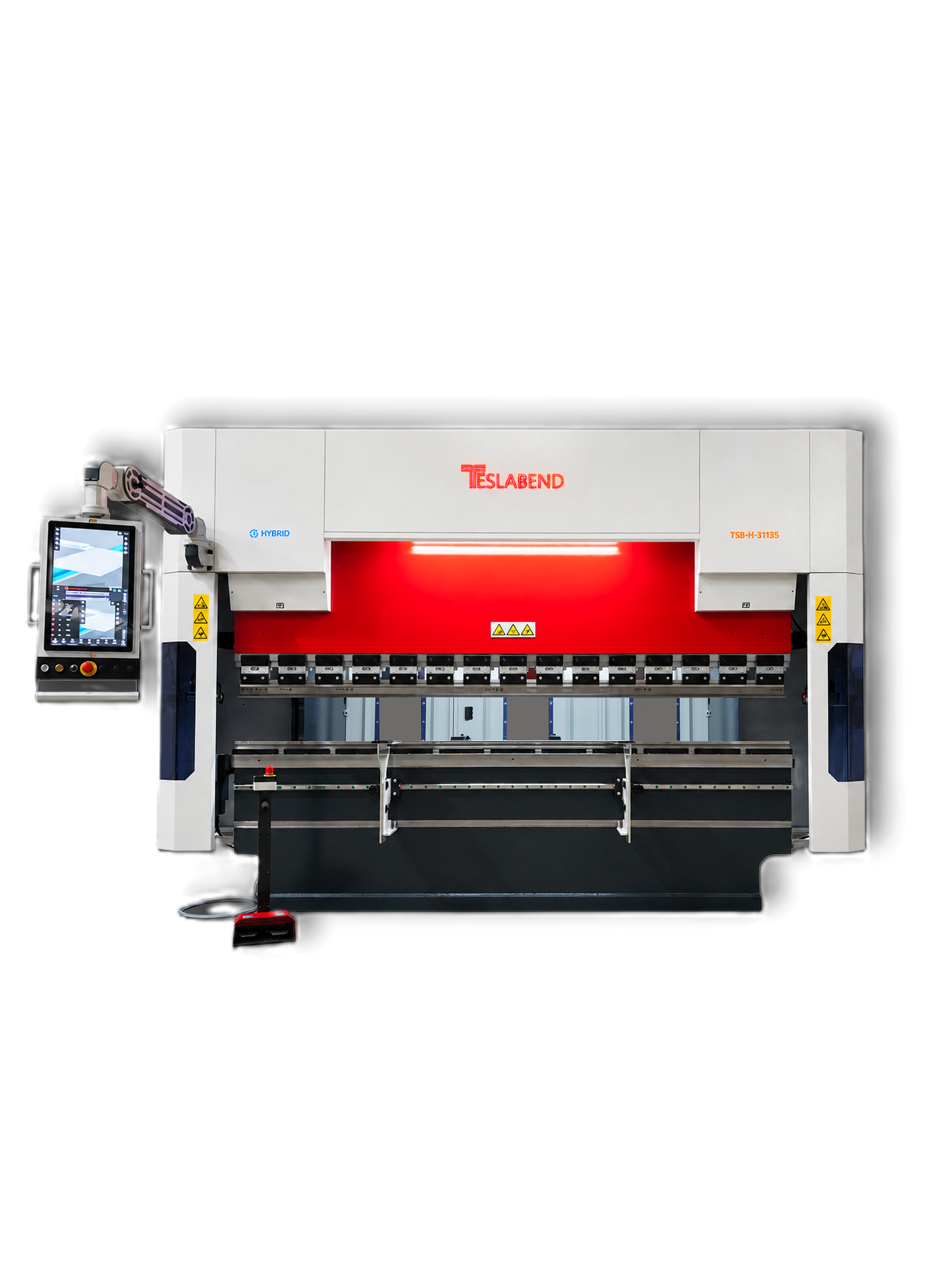

Hybrid Press Brake

Engineered for metal fabricators seeking maximum output, micron-level precision, and environmental responsibility, the TESLAMAK Hybrid Press Brake seamlessly bridges the brute force of heavy-duty hydraulic systems with the dynamic response and precision of modern servo drive technology.

By replacing traditional constant-run hydraulic pumps with an advanced On-Demand Dual Servo-Hydraulic Drive System, TESLAMAK eliminates energy loss and oil overheating—delivering a dramatic reduction in operational costs and elevating overall plant productivity.

KEY ADVANTAGES

1. Up to 65% Energy Savings

Unlike conventional hydraulic press brakes that run their main pumps continuously, TESLAMAK Hybrid technology consumes power strictly during ram movement and bending operations. Operating with virtually zero energy consumption in standby mode, it reduces overall electricity costs by 50% to 65%.

2. Micron-Level Precision & Superior Repeatability

Equipped with high-resolution linear encoders and a closed-loop electro-hydraulic synchronization system, the machine yields consistent angle accuracy from the very first bend to high-volume runs—regardless of sheet thickness variations.

3. Dynamic Speed & Shorter Cycle Times

Millisecond servo response times optimize approach, bending, and return speeds. By significantly accelerating non-bending idle movements, production cycle times are shortened, increasing your daily part throughput by up to 30%.

4. Minimal Oil Volume & Thermal Stability

The hybrid architecture utilizes up to 70% less hydraulic fluid than standard hydraulic systems. Since oil is pumped only when needed, thermal buildup is prevented (maintaining an optimal operating temperature of 38°C–45°C). This prolongs oil life, protects seals from degradation, and eliminates the need for external oil chillers.

5. Reduced Maintenance & Extended Machine Uptime

A compact, integrated hydraulic block design reduces piping, fittings, and valve complexity. Minimized thermal stress and cleaner oil conditions translate directly to fewer mechanical failures, lower service expenses, and maximum operational uptime.

6. Ultra-Quiet Working Environment

By replacing noisy continuous hydraulic pumps with variable-speed servo drives, the ambient workshop noise is reduced drastically (operating below 60 dB). This enhances operator safety, comfort, and focus.

7. Eco-Friendly Manufacturing for Green Factories

With its ultra-low carbon footprint, reduced oil usage, and lower waste risk, the TESLAMAK Hybrid Press Brake helps modern enterprises align with global green manufacturing metrics and ISO 14001 environmental compliance standards.

TECHNICAL INSIGHT: HOW HYBRID TECHNOLOGY WORKS

The TESLAMAK Hybrid system relies on an independent dual-cylinder setup powered by dedicated AC servo motors and bi-directional pumps. Controlled precisely by the CNC system, the servo motors modulate pump output in real time to deliver the exact volume and pressure required for each bend phase. By eliminating throttling losses across control valves, energy transfer efficiency is maximized.

WHY CHOOSE TESLAMAK HYBRID PRESS BRAKE?

• Lower Total Cost of Ownership (TCO): Substantial savings on electricity, fluid maintenance, and replacement parts.

• Fast ROI: High energy efficiency and faster cycle times ensure rapid payback on your capital investment.

• Industry 4.0 Ready: Equipped with smart diagnostic sensors and seamless integration capabilities for digital shop floors.

• Heavy-Duty Construction: Stress-relieved, high-rigidity monoblock steel frame designed for continuous precision over decades.
