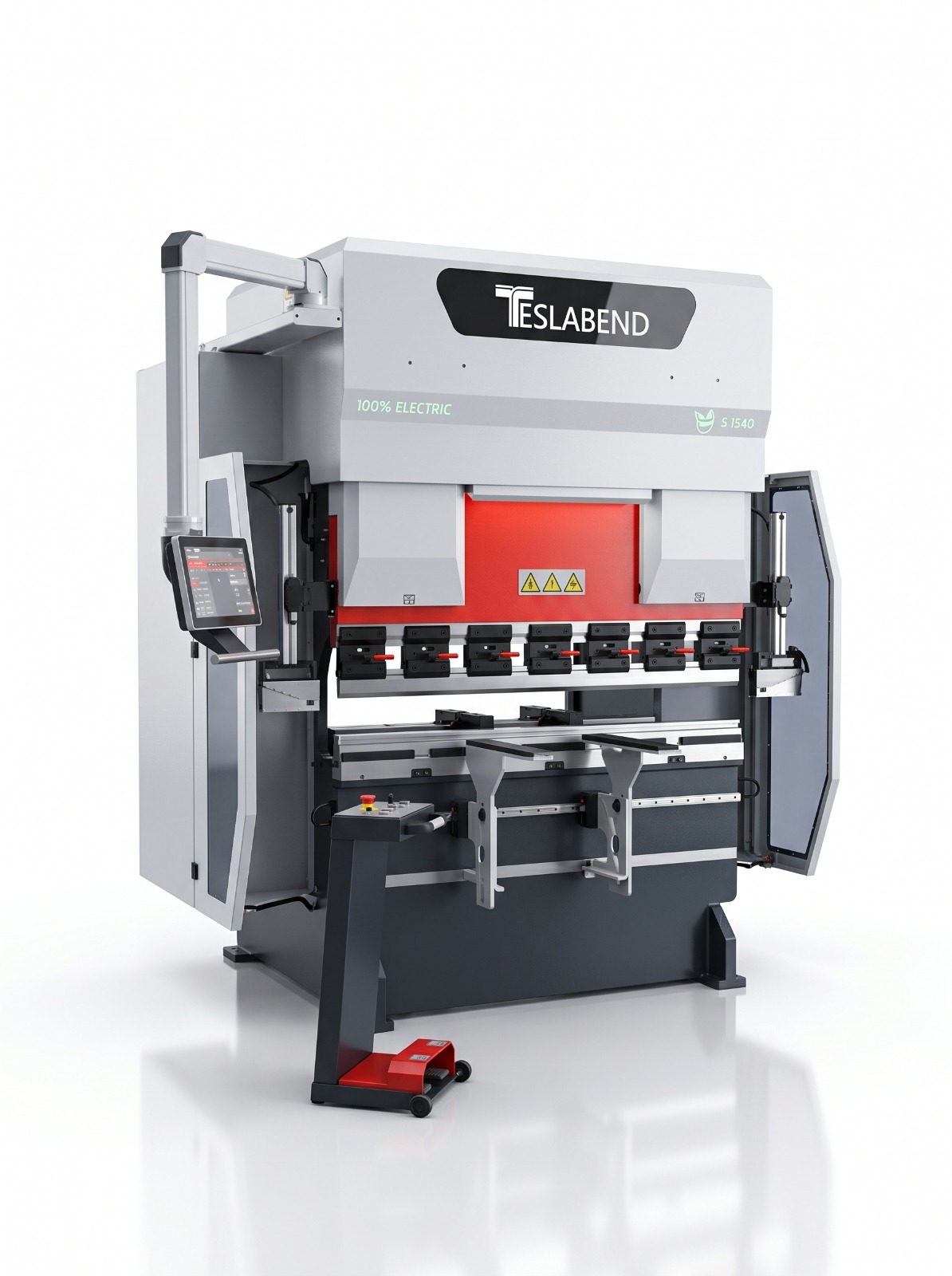

TSB S-630
Less Energy. Greater Precision.
• Y1 Servo Motor
• Controller ESA S830, STEP PX13+, CYBTOUCH12
• Stroke 210 mm
• Throat Depth: 300 mm
• X+R Accuracy ±0.03 mm | X: 500 mm | R: 160 mm
• Back gauge Finger 2 pcs
• Top Tool Holder Promecam type quick release clamping
• Bottom Tool Holder European type Narrow W:60mm
• Top Tool Standard (H: 67 mm, 85°, R0.8 )
• Bottom Tool Standard (H60 - 4 V - 16/22/35/50mm, 85°)
• Sensitive Linear Scale
• Led Lighting Ambiance lighting
• Sliding Part Support 2 pcs
• Double switch pedal with anti-panic button
