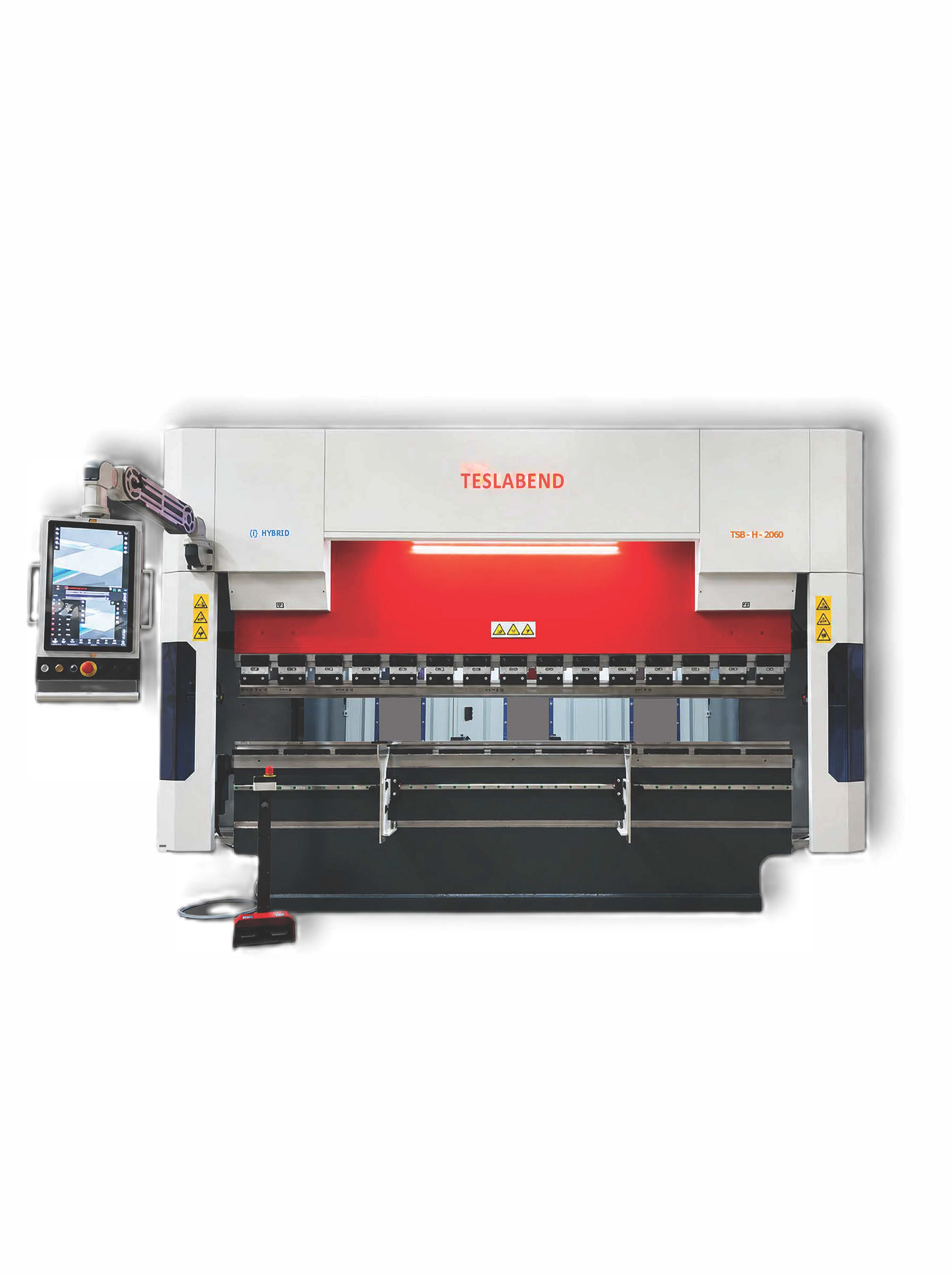

TSB H-2060

Welded frame with high static and dynamic rigidity

280 mm stroke optimized for tall tooling

180 mm/s fast approach speed and 180 mm/s return speed

Y1 and Y2 axes controlled by proportional servo valves

Servo-driven backgauge system

High-precision positioning via optical linear scales

Ergonomic design for maximum operator efficiency

Laser safety system for operation protection

Touchscreen CNC controller

2D graphical programming and automatic bend sequence calculation

Side and rear safety guards with safety interlock switches

Front support arms with linear guide rails

CNC-controlled motorized crowning system

Low-noise operation for a quiet work environment

Reduced power consumption with minimized waste and leakage risk

Reduced hydraulic oil volume and extended oil service life

Maximum energy efficiency

Promecam clamping systems for segmented tools and narrow table
