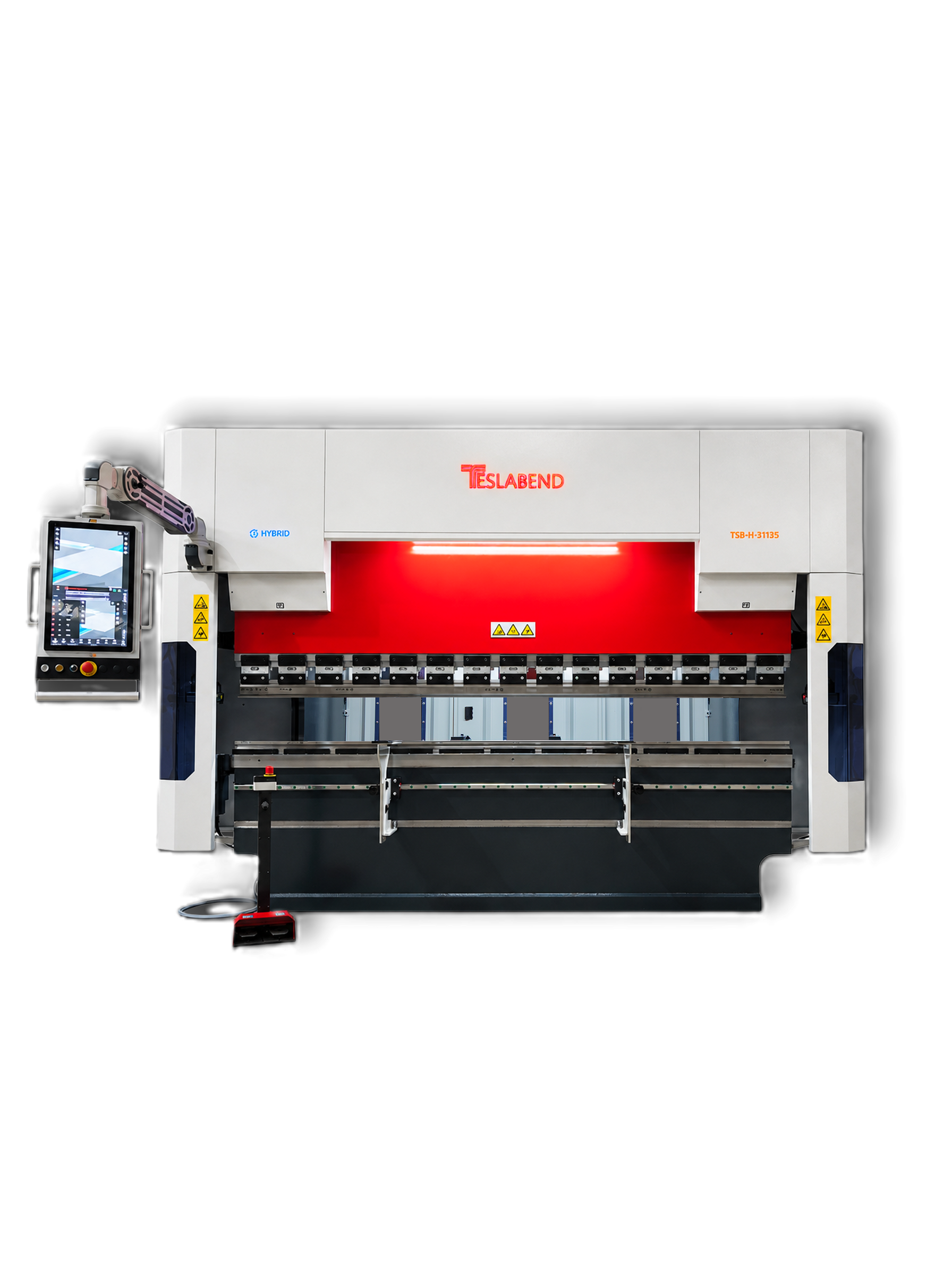

Hybrid TSB H Series

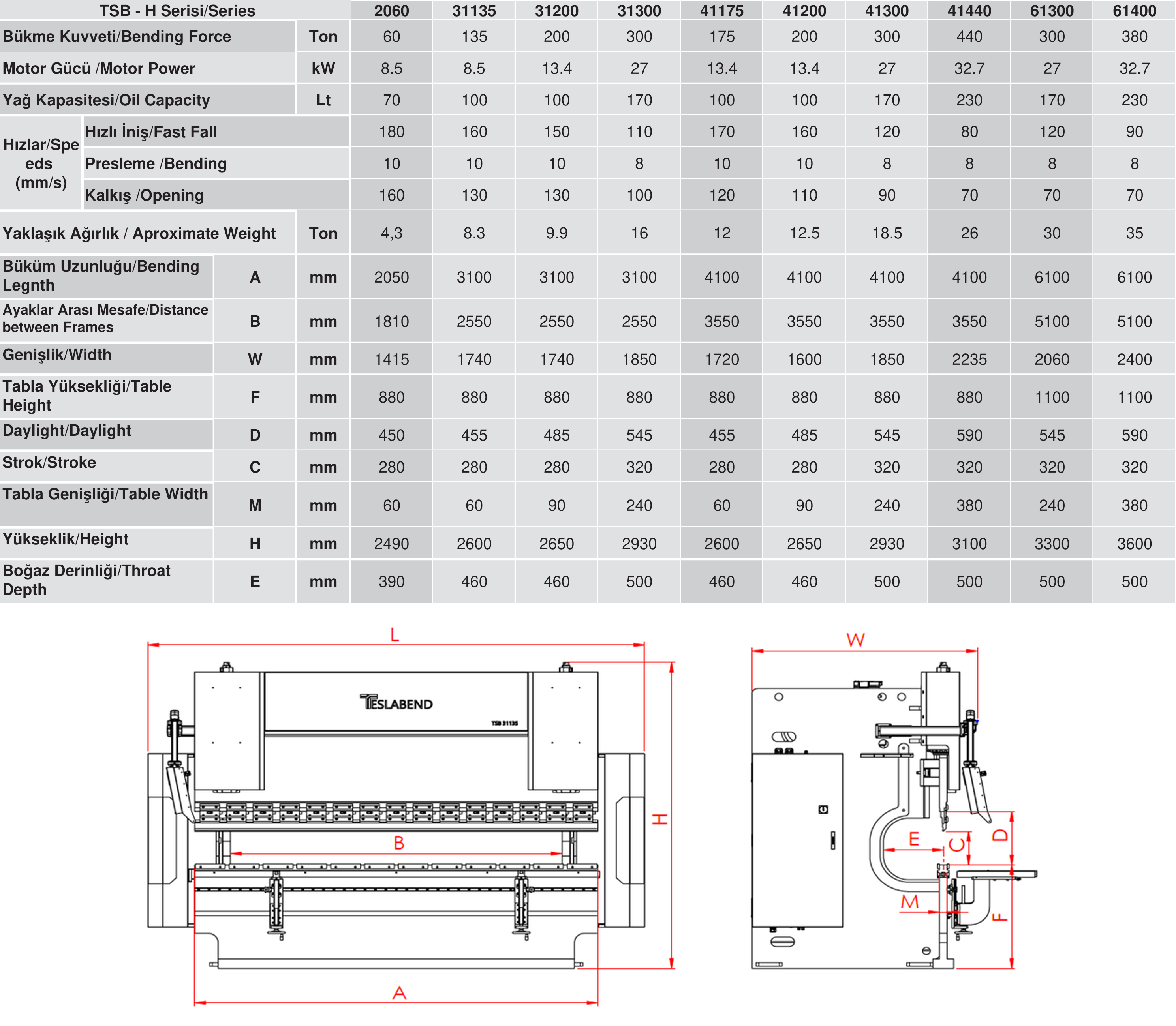

| Machine Type | TSB-H-2060 | TSB-H-31135 | |
| Maximum Force | ton | 60 | 135 |
| Bending Length | mm(A) | 2050 | 3100 |
| Distance Between Columns | mm(B) | 1810 | 2550 |
| Fast Approach Speed | mm/sn | 180 | 180 |
| Bending Speed | mm/sn | 10 | 10 |
| Return Speed | mm/sn | 180 | 130 |
| Table Height | mm (F) | 880 | 865 |
| Table Width | mm (G) | 60 | 60 |
| Stroke | mm (C) | 280 | 280 |
| Throat Depth | mm (E) | 395 | 460 |
| Daylight | mm(D) | 450 | 467 |
| Motor Power | Kw | 8,5 | 8,5 |
| Hydraulic Oil Capacity | lt | 80 | 100 |
| Total Net Weight | kg | 4300 | 8250 |
